Trailer Wiring Colors: A Practical Identification Guide

Trailer wiring colors make an electrical problem look simpler than it is. A green wire, a yellow wire and a white ground lead may point a technician in the right direction, but color alone does not prove the connector pin, circuit function or condition of the wire. Trailers accumulate repairs, adapters and replacement plugs over time. The dependable approach is to use the color as a clue, then confirm the system before cutting, splicing or ordering parts.

Quick answer: on many four-way flat trailer harnesses, white is ground, brown is running and marker lights, yellow is left turn and stop, and green is right turn and stop. Verify the exact trailer and tow-vehicle diagram before connecting a repair.

Why trailer wire colors are only a starting point

Color conventions help organize a harness, especially on a basic light circuit. They are not a substitute for the trailer manufacturer's wiring diagram, the connector manufacturer's terminal layout or a circuit test. A seven-way connector carries more circuits than a four-way flat connector, and added brakes, reverse lamps, battery charging or auxiliary equipment introduce additional functions. A trailer that has been repaired more than once can also contain a replacement wire whose color no longer matches the original harness.

Before identifying a conductor, note the connector style, the number of terminals and the equipment on the trailer. Then look for a wiring label, service documentation or a diagram from the trailer or connector maker. A test light or meter used according to the equipment procedure can confirm the function at the connector. That small amount of verification is faster than redoing a repair after the lights work incorrectly or a brake circuit is connected to the wrong terminal.

Common 4-way trailer wiring colors

A four-way flat connector is commonly used for basic trailer lighting. The following convention is common, but it still needs to be verified against the equipment in front of you.

Common color	Typical role on many 4-way systems	What to verify before repair
White	Ground return	Clean metal connection, secure fastener and continuity back to the tow vehicle ground
Brown	Running, marker and license lights	Which lamps share the branch and whether a splice feeds multiple lights
Yellow	Left turn and stop lamp circuit	Connector pin location and the trailer's lamp configuration
Green	Right turn and stop lamp circuit	Connector pin location and the trailer's lamp configuration

Many North American trailer systems combine turn and stop functions in the same left and right circuits. That design should not be assumed on every trailer, particularly where an adapter, separate brake-light circuit or non-standard equipment is involved. Treat the connector diagram and confirmed pin position as the source of truth, not the insulation color by itself.

Bonded two-conductor wire with insulated copper conductors — Keep a trailer circuit organized from connector to lamp, and identify both ends before joining a repair wire.

More wires mean more reasons to verify

Five-, six- and seven-way trailer connectors are often used when a trailer needs more than basic lighting. Depending on the equipment, additional circuits can serve electric brakes, reverse lamps, auxiliary power, a breakaway battery charge line or other functions. Pin layouts vary by connector family and application. The same color can be used differently between harnesses, and a previous owner may have changed a branch without updating the rest of the wiring.

Start by identifying the connector family and its terminal positions. Look at the connector face, not only the back of the plug, because the orientation changes what appears left or right. Photograph the existing connector before disassembly. Record the terminal markings, wire colors, trailer function and any part number. If a circuit supplies brakes or another safety-related load, follow the trailer and brake-controller instructions rather than treating the job like a basic lamp repair.

Trace the whole circuit before choosing wire

A trailer light circuit is only as reliable as the full path between the tow vehicle, connector, harness, lamp and ground. A wire that looks intact beside the tongue can be rubbed through farther back at a clamp, a frame opening or a suspension movement point. A green or yellow lead may be correct at the plug but connected to a corroded socket, a weak crimp or a poor ground at the lamp.

Disconnect power as directed by the equipment procedure, then inspect the route from end to end. Look for crushed insulation, loose clips, exposed copper, green corrosion, sharp edges and places where the harness is stretched tight. Check the ground connection with the same care as the powered conductors. Many trailer-light faults come back to a ground that is painted over, loose, corroded or trying to return through a connection that was never meant to carry the circuit.

For a replacement section, match the circuit's wire construction, gauge and environment. A short patch of smaller wire can become the weak point in a longer branch. The automotive wire gauge guide explains why load, route length and installation conditions matter together. For a trailer harness, also account for road spray, vibration, abrasion and the connector's repeated movement during coupling.

Make the splice fit the repair

A reliable splice starts with sound copper and a connector matched to the actual conductor range. Strip only the length the connector requires, keep the insulation intact beyond the stripped end and use the specified crimp method. A connector that is too large can leave a loose conductor. One that is too small can damage strands or prevent a proper crimp. The repair must also have enough slack and support that vibration is not carried by the splice.

For exposed trailer wiring, consider the location before choosing the connection and protection method. A repair behind a protected interior panel faces different conditions from one under a trailer frame. After the electrical connection is complete, protect it from water, abrasion and movement as appropriate for the equipment design. Electro-Fast's 3M terminals and connectors and cable-management range can help match the connector and route protection to the work.

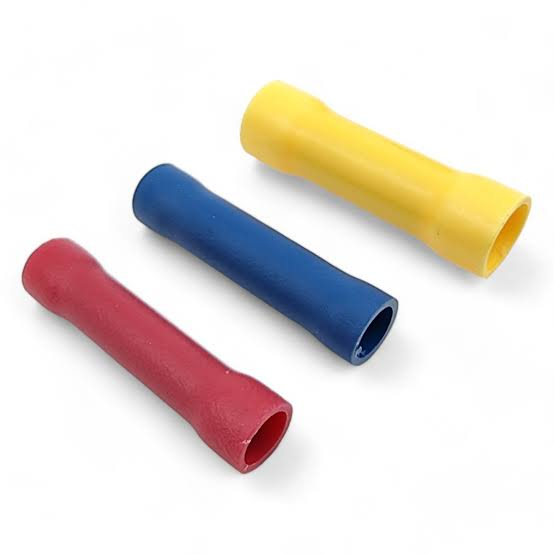

3M single-crimp butt connectors in several wire ranges — Match the connector's stated wire range and the repair environment before making a trailer splice.

A practical trailer wiring check before ordering

Identify the connector: note whether the system uses a flat or round connector and count the terminals.
Confirm the function: use the trailer diagram and a proper test procedure to identify each circuit.
Trace the route: inspect from tow vehicle connection to lamp, brake or accessory, including grounds.
Record the repair details: note wire color, gauge, circuit function, connector style and any part number.
Plan the full repair: include the proper cable, connector or splice, protection, supports and circuit protection where required.

A clear photo of the plug face, the damaged area and the lamp or accessory can make a parts request much easier to match. Include the trailer type, the number of circuits, the wire gauge where known and whether the repair sits in an exposed area. This turns a request for a "green trailer wire" into enough information to identify the right cable and connection parts.

Get trailer wiring parts that match the job

Electro-Fast carries TC multi-conductor trailer cable, primary wire, duplex and bonded wire, plus terminals, connectors, wire protection and fleet electrical products. Browse the trailer-cable parts list for available TC options, review Pollak vehicle electrical products for trailer and towing connections, or use Parts Search when a part number is known.

For help matching a repair, send the connector style, circuit function, wire gauge, equipment application and a photo through the quote request form. It gives the sales team the details needed to help identify a cable and connection that fit the trailer, instead of a close-looking substitute.

Frequently asked questions

What color wire is ground on a trailer?

White is commonly used for the ground wire on many trailer connectors. Confirm the trailer diagram and test the circuit before repairing it, because earlier work or a non-standard harness can change what a color appears to mean.

What do brown, yellow and green wires do on a 4-way trailer connector?

On many 4-way flat systems, brown serves running, marker and license lights, yellow serves the left turn and stop circuit, and green serves the right turn and stop circuit. Confirm the connector and trailer diagram before connecting a replacement.

Can I match trailer wires by color only?

No. Color is a useful starting point, not proof. Verify the connector style, count the circuits, inspect the trailer diagram and test the wire function before making a splice or replacing a plug.

Why do trailer lights still fail after the colors look correct?

A correct color match cannot overcome a weak ground, corroded connector, wrong pin location, damaged lamp socket, undersized repair wire or missing circuit protection. Check the complete path from the tow vehicle connector to the lamp and back through the ground.
