Battery Terminal Types: How to Choose the Right Connection

Battery terminal types are easy to underestimate. A terminal may look close enough to fit until the cable is routed, the clamp is tightened or the equipment starts pulling current. Then a mismatch becomes a loose connection, a cable under strain or a repair that has to be reopened. The useful approach is to identify the connection already on the battery, then match the cable, polarity, route and environment before choosing a replacement.

Quick answer: start with the battery connection style, then confirm positive or negative polarity, cable gauge, terminal direction and any stud or bolt size. A battery terminal is part of a complete connection, not a universal clamp.

First, separate the battery terminal from the cable terminal

People often use “battery terminal” for two different parts. The battery may have a tapered post, a threaded side connection or a stud. The cable end may have a clamp, a crimped casting, a lug or an adapter that mates to that battery connection. Both pieces matter, but they are not interchangeable.

Start by looking at the battery itself, not only the old cable end. Note whether the connection is on top, on the side or on a threaded stud. Check where the positive and negative connections sit on the case, because a terminal that fits physically can still leave the cable short or force it across a hot, sharp or moving area. When the existing setup is unfamiliar, a clear photo of the battery and both cable ends is more useful than a guess from the vehicle type.

Common battery terminal types and where they fit

The names overlap across vehicle, marine and equipment work, so it helps to identify the connection by its shape and attachment method. The table below is a practical sorting tool, not a substitute for the equipment or battery maker’s instructions.

Connection type	What to look for	Typical use	Important check
Top post	Tapered posts on the top of the battery case	Many passenger vehicles and light trucks	Clamp size, polarity and cable reach
Side post	Threaded connection points recessed into the battery side	Some automotive applications	Correct terminal shape and fastener engagement
Threaded stud	Stud and nut connection, often used with a ring lug	Marine, equipment and heavy-duty power	Stud diameter, lug hole and hardware stack
Marine terminal	Stud-style connection intended for a bolted cable lug	Boat battery and accessory circuits	Positive or negative stud size and corrosion exposure
Crimp battery terminal	One-piece terminal installed on cable with a matched crimp	Fleet, equipment and replacement leads	Cable gauge, polarity and terminal direction

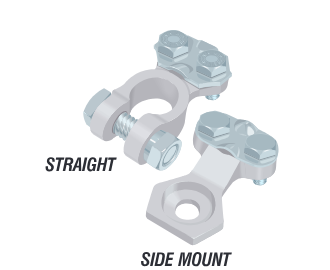

Temporary bolt-on	Mechanical clamp or bolt-on connection at the cable end	Suitable replacement or repair applications	Published cable range and secure final fit

Top-post and side-post connections are not variations of the same part. A top-post terminal clamps around a tapered battery post. A side-post terminal uses the battery’s threaded side connection. Threaded-stud and marine arrangements usually require a lug or terminal with the correct hole and hardware. Do not force an adapter into the decision unless it solves a verified fitment problem without compromising the route or service access.

Heavy-duty battery terminal lug for a cable connection — A lug has to match both the cable conductor and the connection point it will be fastened to.

Match the terminal to the cable, not just the battery

Once the battery connection is known, confirm the cable. The terminal needs a conductor range that matches the actual cable gauge. It also needs the right polarity and a shape that lets the cable approach the battery without a hard bend, tension or contact with nearby components. A terminal intended for a lighter cable can be a poor choice for a heavy starter or charging lead, even if it appears to clamp in place.

For a crimped terminal, the conductor size and the tool or die specification belong together. A terminal that is too large may not grip the strands correctly. One that is too small can damage strands or fail to seat. For a bolted lug, confirm the cable barrel range and the stud-hole size separately. Cable size does not determine stud size, and the stud size does not prove the lug suits the cable.

The cable route also changes the best terminal shape. A straight terminal may work where the cable can approach directly. A right-angle or elbow terminal can make a cleaner connection in a tighter compartment, but only when it keeps the cable away from heat, sharp edges and moving parts. The goal is a secure connection with a natural route, not a terminal that merely reaches.

Choose the connection for the service environment

Vehicle, marine and stationary equipment connections face different kinds of wear. A fleet cable may see vibration, repeated inspections and road contamination. A marine battery connection can face moisture and corrosion exposure. Equipment may have limited service space, cable movement or heavy starting loads. These conditions should influence the terminal material, plating, protective accessories and routing plan.

On marine work, follow the battery and boat builder guidance for the installation rather than applying a generic vehicle repair habit. The Coast Guard’s recreational-vessel electrical-system rules are a useful reminder that cable support, overcurrent protection and installation details are part of a safe system, not an afterthought after the terminal is attached.

Look for evidence that the old terminal failed because of the environment, not simply age. Corrosion, green deposits, a loose clamp, heat discoloration, broken insulation, rubbed cable or an overstretched route all point to a repair that needs more than a new end. Add the appropriate protection, fastening or cable management while the connection is open. Replacing the terminal alone often leaves the original cause in place.

Tinned battery cable for a durable power connection — In exposed environments, the cable, terminal and route need to be considered as one assembly.

Use polarity and layout as fit checks

Positive and negative terminals are not a cosmetic detail. A positive terminal may be marked, covered or sized differently, and cable ends are often shaped for the side of the battery where they must land. Before ordering, compare the battery layout with the existing cable route. Check whether the connection needs a straight, right-angle or elbow orientation and whether any accessory lead needs a dedicated attachment point.

Do not stretch a cable across the battery because the new terminal faces the wrong way. That can load the connection, restrict service access and make it easier for the cable to rub. If the battery is being replaced as well as the terminal, confirm the terminal location and polarity layout of the replacement battery before assuming the old cables will still land correctly.

When working around vehicle batteries, follow the equipment maker’s procedure. For routine service, that normally includes disconnecting the electrical system correctly and avoiding a tool bridge between a live positive connection and grounded metal. A terminal replacement is small work, but a battery can deliver high current very quickly when a connection is accidentally shorted.

Inspect the whole connection before ordering parts

A battery terminal problem is sometimes visible at the cable end, but the useful inspection goes farther. Follow the cable from the battery to its next connection point. Look for flattened insulation, exposed strands, hard bends, missing support, a cable that touches an edge, and any location where heat or movement is working against it. If the cable has lost length near the terminal or the conductor is darkened, a new terminal alone may not restore a dependable connection.

Check the mating surface as well. A top post should not be deeply damaged by repeated over-tightening. A side-post connection should not have a compromised threaded insert. A stud connection needs clean threads, compatible hardware and enough thread engagement after the lug and washers are in place. Adding washers, accessory leads or protective covers changes the stack at a stud, so confirm the final assembly instead of assuming the original nut will still secure everything correctly.

Corrosion deserves a closer look. Deposits on a terminal are not just cosmetic when they interfere with contact or indicate that the connection is exposed to conditions it was not prepared to handle. Clean and inspect according to the equipment maker’s guidance, then correct the source of the problem where possible. A protected, supported cable route and the right terminal material can be more valuable than repeatedly fitting another quick replacement.

Cable tie used to support an electrical cable run — Support the cable run so vibration and cable weight do not work against the terminal connection.

Five details that make a battery-terminal request clearer

Battery connection style: top post, side post, threaded stud, marine stud or another identified configuration.
Polarity: positive or negative, plus a photo when the old terminal markings are unclear.
Cable size: the conductor gauge or the marking on the cable, not only the outside diameter.
Terminal direction: straight, right-angle, elbow, side-mount or another route-specific shape.
Application details: vehicle, boat or equipment, expected environment, stud size, accessory leads and any protection needed.

This short list narrows the search faster than asking for a “universal” terminal. It also helps identify the supporting parts that may be needed, such as a lug, battery bolt, heat shrink, terminal protector, clamp, loom or grommet. The replacement can then be planned as a finished cable connection instead of a single loose component.

When a terminal replacement should become a cable repair

A terminal replacement is a good fit when the cable is sound, the conductor range is known and the new terminal can be installed with the correct method. Step back and treat the job as a cable repair when the cable is too short, the strands are damaged, the insulation has failed close to the end, the route is wrong or the connection has been hot enough to discolor nearby material. Those are signs that the issue is larger than the clamp or lug at the battery.

That distinction matters for uptime. A quick part swap may get a piece of equipment running, but it can leave the same vibration, corrosion or strain point ready to create the next failure. Replacing the cable section, choosing a terminal that suits the route and adding protection where needed gives the repair a better chance of lasting through normal service. It also makes the next inspection simpler because the connection is clear, supported and easy to evaluate.

Build a dependable battery connection with Electro-Fast

Electro-Fast carries BT battery terminals for crimp, temporary bolt-on, military, marine, side-mount and charging-post needs, plus heavy-duty lugs and accessories. The live BT battery terminal list helps narrow the available styles, while the terminals and connectors range covers lugs, heat shrink and related connection products.

For a battery or starter cable repair, include the battery style, cable gauge, polarity, terminal orientation and equipment details. If the application needs new cable as well, the SGX battery cable guide and marine battery cable guide explain the route, termination and protection checks that belong with a heavy-duty power connection. Send the details to the quote request form when a photo, part number or unusual connection needs a closer look.

Frequently asked questions

What are the most common battery terminal types?

Common vehicle and equipment connections include tapered top-post terminals, side-post terminals, threaded-stud connections, marine stud terminals and crimped cable terminals. The correct choice is the one that matches the battery connection, cable size, polarity, routing space and expected load.

Can I use a temporary bolt-on battery terminal permanently?

A bolt-on terminal can be useful for an appropriate repair or replacement when its cable range, fit and installation are correct. It should not be treated as a universal answer. Check the battery connection, cable size, route and service conditions, then choose a terminal designed for that job.

How do I know whether I need a top-post or side-post terminal?

Look at the battery itself. A top-post battery has tapered posts on top of the case. A side-post battery has threaded connection points on the side. Do not choose by cable color or a similar-looking old part alone, because the connection geometry must match the battery.

What details should I provide when ordering a battery terminal?

Provide the battery connection style, positive or negative polarity, cable gauge, terminal direction, vehicle or equipment application, stud size where relevant, and a photo or part number when available. Those details make it much easier to avoid a close-but-wrong match.
