Automotive Fuse Types: How to Identify the Right One

Automotive fuse types can look deceptively similar. A replacement may have the same color and a familiar amp number, yet still be the wrong shape for the fuse block, the wrong construction for the circuit or the wrong rating for the protection plan. That is why a successful replacement starts with identification, not a guess from color or a quick match at the counter.

Quick answer: match the fuse family first, then the rating and the application. Use the vehicle or equipment documentation as the deciding reference, and never fit a larger fuse simply because the original one opened.

What an automotive fuse protects

A fuse is a sacrificial circuit-protection device. When current exceeds what its element is designed to carry, the element opens and interrupts the circuit. The point is to protect the wiring and connected equipment when there is a fault, not to act as a universal fix for a component that keeps failing. The automotive-fuse overview from Pacific Engineering Corporation explains the same basic principle: an overcurrent heats the fuse element until it opens the circuit.

That protection only works when the fuse is chosen for the actual circuit. A fuse value that is too high can delay protection until wire or equipment is already stressed. One that is too low may open during normal operation. Repeated opening is a troubleshooting signal. Replace a fuse only after checking the circuit against the equipment documentation and looking for the short, overload, damaged wire or failed component that caused it.

Start with physical format, not color

Automotive fuse families are not interchangeable just because they use the same current rating. Hold the old fuse beside the empty position and inspect the body shape, terminals and overall size. Then read the label on the fuse-block cover, owner manual or equipment documentation. This is especially important on fleet equipment, trailers and aftermarket installations, where an added holder may use a different family from the vehicle's factory fuse panel.

Common family	What it looks like	Where it is often found	Check before replacing
Standard blade, ATO/ATC	Broad plastic body with two flat blades	Older and many serviceable vehicle circuits	Holder fit and stated amp rating
MINI and low-profile MINI	Smaller blade-style body	Compact vehicle fuse panels and accessory circuits	Do not confuse low-profile with standard MINI
Micro2 and Micro3	Very compact blade styles, with different terminal layouts	Modern high-density panels	Exact family and terminal count
MAXI	Larger blade fuse	Higher-current vehicle circuits	Fuse-block family and circuit specification
JCASE or MCASE	Cartridge-style body for higher-current circuits	Under-hood or power-distribution locations	Exact case style, rating and documented location
MEGA or MIDI	Bolted high-amperage format	Battery-adjacent and heavy-duty power protection	Terminal spacing, voltage and circuit design
AGC or SFE glass cartridge	Glass tube with metal end caps	Older vehicles, accessories and specialized holders	Length, diameter, rating and holder type

Blade fuses remain a widely used automotive format, but that does not make every blade fuse interchangeable. The Littelfuse ATOF blade-fuse data sheet identifies the ATO family as a vehicle circuit-protection format with its own electrical and physical specifications. Treat the part number, style and documented application as the full identity of the fuse.

Covered inline MINI blade fuse holder with leads — A holder and a fuse have to use the same family before the rating can be matched to the circuit.

Read the amp rating as part of the circuit design

A printed amp value is not a suggestion to select the next larger number. It is one part of a circuit design that also includes system voltage, wire size, expected load, holder rating, device behavior and the route where the wire is installed. The correct replacement is normally the documented value for that exact circuit and physical format.

Color coding can help sort common blade fuses, but it should be a cross-check, not the primary identification method. Fading, poor lighting, different product lines and similar shades make color a poor substitute for the number printed on the fuse. A technician or buyer should be able to state the fuse family, the amp rating and the location or circuit it protects before placing a replacement order.

For a new accessory circuit, do not copy the fuse value from an unrelated vehicle circuit. Start with the equipment instruction, wire selection and protection guidance for that installation. If the circuit carries a motor, lamp, compressor, charger or other load with a startup surge, the component documentation matters even more. A nuisance opening can point to an undersized fuse, but it can also indicate a damaged component or a circuit that was never designed for the added load.

High-amperage fuses need more information

MEGA, MIDI, JCASE, MCASE and similar higher-current styles deserve a slower identification process. Their physical construction and mounting hardware are different from a small branch-circuit blade fuse, and they often protect a larger feed close to a battery, distribution point or heavy electrical component. The exact mounting pattern, voltage rating, conductor, connection hardware and equipment requirement all matter.

Do not reduce a high-amperage replacement to the question, “What amp number is on the old fuse?” Photograph the part in place. Record any marking, the bolt or terminal spacing, the cable size, the equipment it feeds and the installation location. If a high-amperage fuse opens, look for heat discoloration, damaged insulation, loose hardware, corrosion or an underlying component fault before fitting another one.

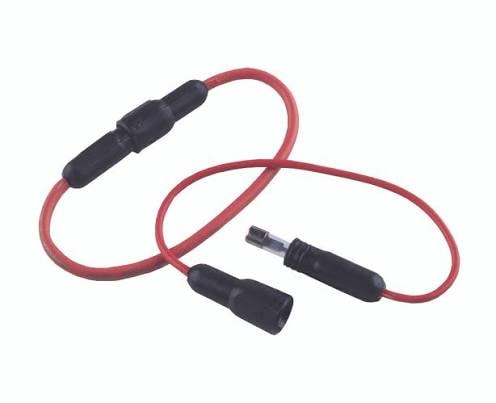

Weather-resistant inline fuse holder with a protective cover — In exposed locations, confirm the holder, its sealing and the wire leads as well as the fuse itself.

Fuse holders are part of the selection

Every fuse needs a compatible holder, block or panel position. An inline holder used for an added accessory has its own fuse family, lead size, voltage and environment limits. A holder that accepts the wrong fuse shape, or whose leads are not suitable for the circuit, can defeat the purpose of selecting the correct fuse.

For wet, vibrating, dirty or marine service, inspect the holder and surrounding connection as carefully as the fuse. A clean, secure, properly supported holder helps prevent intermittent contact and makes later service easier. Keep the holder accessible, protect its leads from sharp edges and match the protection hardware to the actual environment. The Fleet & Marine fuse list groups blade, cartridge, high-amperage and marine-rated options with compatible holder choices.

Multi-conductor trailer cable for a protected low-voltage wiring run — The fuse, holder and wire route belong to the same protected circuit, especially on trailer and accessory work.

Why a fuse opens, and what to check next

A blown fuse does not identify the cause by itself. It only tells you the circuit saw more current than the protection device allowed. A damaged wire rubbed through near a bracket can create a direct short. A motor, lamp socket, trailer connector or accessory can fail internally. Moisture in a connector can make a fault intermittent. A circuit modified with an added load can draw more than its original protection plan supports. Each case needs a different repair, which is why fitting a larger fuse can hide the evidence without correcting the problem.

Start with a visual inspection while the circuit is de-energized and follow the equipment maker's service procedure. Look for chafed insulation, pinched cable, green corrosion, overheated terminals, loose connectors and a holder that no longer grips the fuse correctly. Pay close attention to places where the harness passes through sheet metal, follows a hinge or crosses a trailer tongue, frame or engine compartment. Those points commonly see vibration and movement that a bench inspection does not reproduce.

If the correct new fuse opens immediately, stop and diagnose the circuit rather than fitting another one. If it opens only when a device is switched on or a vehicle is moving, record that condition because it narrows the search. A repeat failure after an accessory installation also calls for a review of the wire gauge, branch path, ground connection and the accessory's actual current requirement. The safest replacement decision is often to pause until the underlying cause is clear.

Special considerations for trailer and marine circuits

Trailer and marine electrical systems add environmental exposure to the normal fuse-selection checks. Water, road spray, salt, vibration and repeated coupling can work into connectors and holders. A fuse that is correct on paper can still be part of an unreliable circuit when the holder is left unsealed in a wet location or its leads are unsupported. Choose protection hardware appropriate to the location, then route the wiring so it is not pulled tight, dragged or left against a sharp edge.

Trailer lighting and accessory circuits often include more than one branch. Identify whether the fuse protects the tow vehicle circuit, a trailer-mounted circuit, a breakaway system or an added accessory before selecting anything. For marine circuits, follow the boat and equipment documentation as well as the component marking. The goal is not merely to restore power. It is to restore a circuit that can be inspected, serviced and trusted in its actual environment.

A practical identification checklist

Find the documented circuit: use the fuse-block label, vehicle manual or equipment information before removing a replacement from its package.
Confirm the physical family: compare the body, terminals, spacing and mounting method, not just the color.
Read every marking: record the amp value, part number and voltage information where shown.
Inspect the holder and wiring: look for loose fit, heat, corrosion, damaged insulation and an unsuitable route.
Investigate repeat failures: a correctly rated fuse that opens again is evidence of a circuit problem, not a reason to increase the fuse size.

Taking a clear photo before removing the part can save a wasted trip, especially when an unfamiliar fuse style is mounted near a battery or inside a crowded panel. Include the surrounding holder and a readable marking in the photo. That information helps separate a standard blade fuse from a similar-looking MINI, micro or cartridge format.
